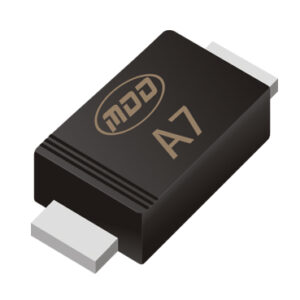

MDD-M4007PL-46
Back to products
Placeholder
MDD-ABS210

MDD-4148W

Features

  • Fast Switching Speed
  • Surface Mount Package
  • For General Purpose Switching Applications

DOWNLOADS:

SKU: 1N4148WMDD SOD123 Category:
Description

Mechanical Data

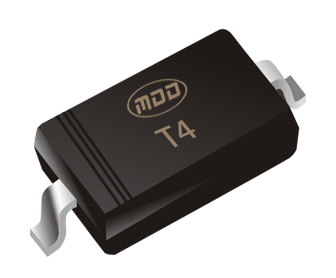

Case : SOD-123
Terminals : Solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position: Any
Weight : 0.00056 ounce, 0.016 grams
