Device Types
- S1A 50V,1.0A
- S1B 100V,1.0A
- S1D 200V,1.0A
- S1G 400V,1.0A
- S1J 600V,1.0A
- S1K 800V,1.0A
- S1M 1000V,1.0A
CDIL-GS1M/M7
S1A S1B S1D S1G S1J S1K S1M

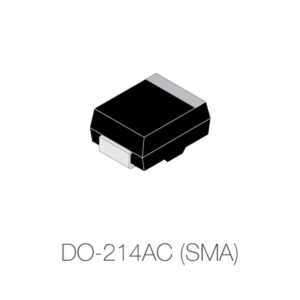

DO-214AC (SMA) Plastic Package
SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIERs
Applications General Purpose Rectifiers
DOWNLOADS:
- Datasheet for S1A _S1M
Description
