CDIL – 18V BZT52 CDIL SOD123
Device Types
BZT52C2V0 ~ BZT52C75 @5mA, 500mW
( Zener Voltage 2.0V ~ 75V)
See the data sheet for BZT52C2V0 ~ BZT52C75
Related products
CDIL – 15V BZV55C CDIL
BZV55BXX BZV55CXX (500mW)
Product Features:
- LL-34 Glass Case MiniMELF
- Silicon Planer 500mW Zener Rectifier
- Applications Low Voltage stabilizers and voltage references
| BRAND | DIODE | SKU |
| CDIL | 18V BZV55C | C-BZV55C18V |
| CDIL | 2.7V BZV55C | C-BZV55C2V7 |
| CDIL | 20V BZV55C | BZV55-C20 |
| CDIL | 24V BZV55C | C-BZV55C24V |
| CDIL | 3.3V BZV55C | C-BZV55C3V3 |
| CDIL | 3.9V BZV55C | C-BZV55C3V9 |
| CDIL | 4.3V BZV55C | C-BZV55C4V3 |
| CDIL | 4.7V BZV55C | C-BZV55C4V7 |
| CDIL | 5.1V BZV55C | C-BZV55C5V1 |
| CDIL | 5.6V BZV55C | C-BZV55C5V6 |
| CDIL | 6.8V BZV55C SOD80C | C-BZV55C6V8 |
| CDIL | 7.5V BZV55C | C-BZV55C7V5 |
| CDIL | 8.2V BZV55C | C-BZV55C8V2 |
| CDIL | 9.1V BZV55CSOD80C | C-BZV55C9V1 |
DOWNLOADS:

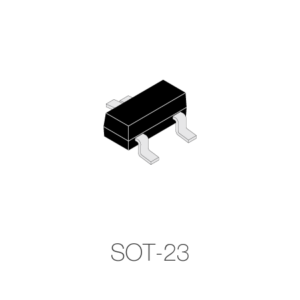

CDIL – BAS16 SOT23
BAS16
Product Features:
SOT-23 Surface-mounted Plastic Package
SILICON PLANAR SWITCHING DIODE
Application High-Speed Switching Diodes
Downloads:
- Datasheet for BAS16

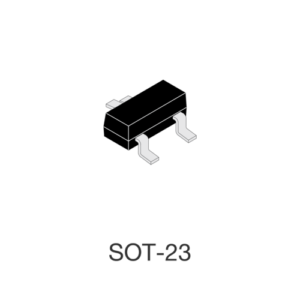

CDIL – BAV99 SOT23
BAV99
Product Features:
SOT-23 Surface Mount Package
HIGH-SPEED SWITCHING DIODES
Application High-Speed Switching Series Diode
Downloads:
- Datasheet for BAV99
CDIL- 2.7V BZX84 SOT23
BZX84C Series (500mW)
Product Features:
SOT-23 Surface-mount Plastic Package BZX84C Series
SILIICON PLANAR VOLTAGE REGULATOR
These devices are also available in equivalents as DO-35 Hermetically Sealed Glass Axial Package as BZX55C series
| BRAND | DIODE | SKU |
| CDIL | 3.3V BZX84C | TBZX84C3V3 |
| CDIL | 3.9V BZX84C | TBZX84C3V9 |
| CDIL | 4.7V BZX84C | TBZX84C4V7 |
Download:
- Datasheet for BZX84C Series
CDIL- BAT54C SOT23
BAT54A BAT54C BAT54S
Product Features:
SOT-23 Formed SMD Package
SILICON PLANAR SCHOTTKY DIODES
Application High-Speed Switching Diodes
Downloads:
- Datasheet for BAT54A BAT54C BAT54S
CDIL- BAT54S SOT23
BAT54A BAT54C BAT54S
Product Features:
SOT-23 Formed SMD Package
SILICON PLANAR SCHOTTKY DIODES
Application High-Speed Switching Diodes
Downloads:
- Datasheet for BAT54A BAT54C BAT54S
CDIL-GS1M/M7
S1A S1B S1D S1G S1J S1K S1M
DO-214AC (SMA) Plastic Package
SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIERs
Applications General Purpose Rectifiers
DOWNLOADS:
- Datasheet for S1A _S1M
CDIL-LL4148
LL4148 LL4448
SOD - 80C Mini MELF (LL- 34) SMD Glass Package
HIGH-SPEED SILICON SWITCHING DIODES
Application: Extreme fast switches
DOWNLOADS:
- Datasheet for LL4148 LL4448
