All features
- Negligible switching losses
- Low forward voltage drop
- Avalanche rated
- ECOPACK2 component

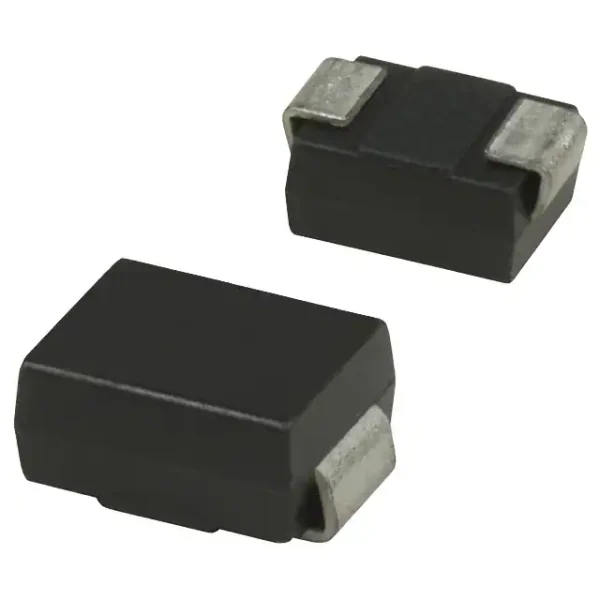

STPS3L60U ST SMB
Axial and surface mount power Schottky rectifier suited for switch mode power supplies and high frequency dc to dc converters.
Packaged in DO-201AD, DO-15, SMB, SMBflat and SMBflat Notch, this device is intended for use in low voltage, high frequency inverters and small battery chargers and for applications where there are space constraints, for example telecom battery charger.
Description
