Home MICROCHIP Microchip – PIC16F722A-I/SO SOIC
Microchip - PIC16F690-I/SO SOIC
Microchip - PIC16F690-I/SO SOIC
Back to products
Microchip - PIC16F72-I/SO SOIC
Microchip - PIC16F72-I/SO SOIC

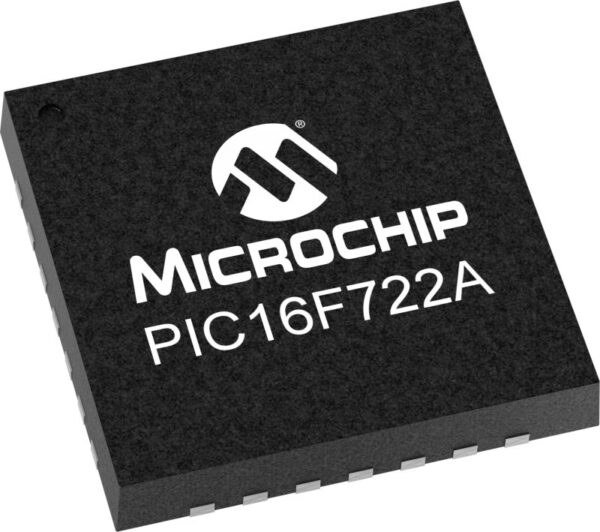

Microchip – PIC16F722A-I/SO SOIC

This versatile 28-pin MCU is a member of Microchip’s family of Extreme Low Power MCUs featuring nanoWatt XLP(TM) Technology.

DOWNLOADS:

  • Data Sheet
SKU: IC16F722A-I/SO Category: MICROCHIP
Share:
  • Description
  • Shipping & Delivery
Description

Product Features:

  • Mid-Range core with 35 Instruction, 8 Stack Levels
  • Flash Program Memory
  • Internal 16MHz oscillator
  • I²C™, SPI, AUSART
  • 2 X CCP (Caputure/Compare/PWM)
  • 11 Channel 8b ADC
  • 25mA Source/Sink current I/O
  • One 8-bit Timer (TMR0)
  • Two 16-bit Timer (TMR1/TMR2)
  • Watchdog Timer (WDT)
  • Enhanced Power-On/Off-Reset
  • Brown-Out Reset (BOR)
  • In Circuit Serial Programming™ (ICSP™)
  • Built-in mTouch™ capacative sensing module
  • Wide Operation Voltage Variant ‘F’ (1.8V – 5.5V)
  • eXtreme Low Power (XLP) ‘LF’ Variant (1.8V – 3.6V)
  • The PIC16F/LF722 & PIC16F/LF722A are electrically identical
  • The ‘A’ variants are provided at reduced pricing
Shipping & Delivery
