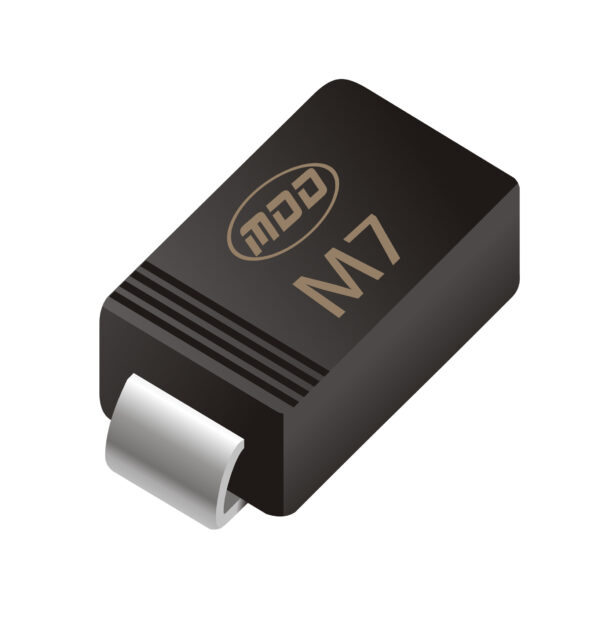

MDD-M7F

MDD-M7 DO214AC

Features

  • The plastic package carries Underwriters Laboratory
  • Flammability Classification 94V-0
  • Idea for printed circuit board
  • Glass passivated Junction chip
  • Low reverse leakage
  • High forward surge current capability
  • High-temperature soldering guaranteed
  • 250 C/10 seconds at terminals

DOWNLOADS:

SKU: 1N4007MDD SMA Category:
Description

Mechanical Data

Case : JEDEC SOD-123 Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position: Any
Weight : 0.0023 ounce, 0.07 grams

Shipping & Delivery
