Mechanical Data
Case : JEDEC SMAF Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position: Any
Weight : 0.0018 ounce, 0.064 grams

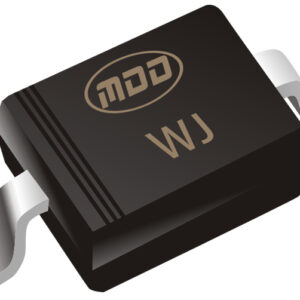

MDD-ES1JF
Features
- The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
- For surface mounted applications
- Low reverse leakage
- Built-in strain relief,ideal for automated
- placement High forward surge current capability
- High temperature soldering guaranteed:
- 260°C/10 seconds at terminals Glass passivated chip junction
