CDIL- SS56B

SS52 – SS510

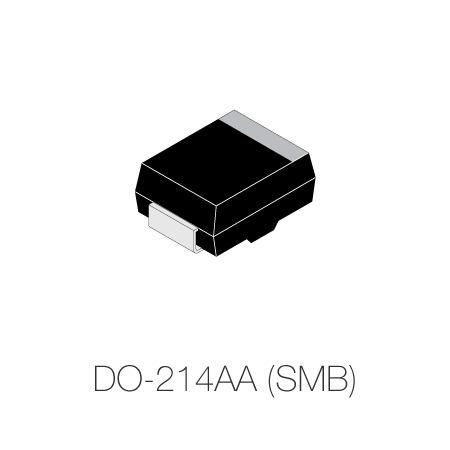

DO-214AA

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Application : Low Power Loss for High Efficiency

                            High Forward Surge Current Capability

DOWNLOADS:

SKU: SS56CDIL SMB Category:
Description

Device Types

  • SS52     20V,5.0A
  • SS53     30V,5.0A
  • SS54     40V,5.0A
  • SS55     50V,5.0A
  • SS56     60V,5.0A
  • SS58     80V,5.0A
  • SS510   100V,5.0A
