CDIL-S3M

CDIL-S1MF

S1AAF S1BAF S1DAF S1GAF S1JAF S1KAF S1MAF

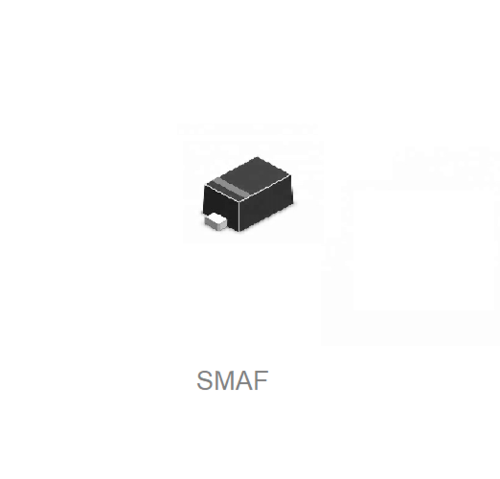

SMAF   SURFACE MOUNT PLASTIC PACKAGE

Applications GENERAL PURPOSE RECTIFIERS

DOWNLOADS:



SKU: S1MFCDIL SMAF Category:
Description

Device Types

  • S1AAF          50V,1.0A
  • S1BAF         100V,1.0A
  • S1DAF         200V,1.0A
  • S1GAF        400V,1.0A
  • S1JAF          600V,1.0A
  • S1KAF         800V,1.0A
  • S1MAF       1000V,1.0A
