CDIL-RS1M

RS1A – RS1M

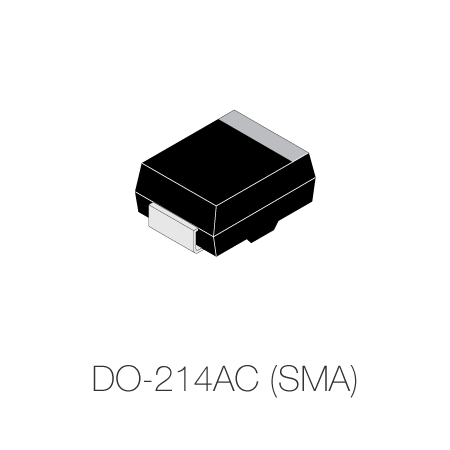

DO214-AC Surface Mount Package

SURFACE MOUNT FAST RECOVERY RECTIFIER

Applications  Fast Recovery Times for High Efficiency

DOWNLOADS:



SKU: RS1MCDIL SMA Category:
Description

Device Types

  • RS1A       50V,1.0A
  • RS1B       100V,1.0A
  • RS1D       200V,1.0A
  • RS1G       400V,1.0A
  • RS1J        600V,1.0A
  • RS1K       800V,1.0A
  • RS1M      1000V,1.0A
