CDIL-ES5JC

ES5A ES5B ES5C ES5D ES5E ES5G ES5J

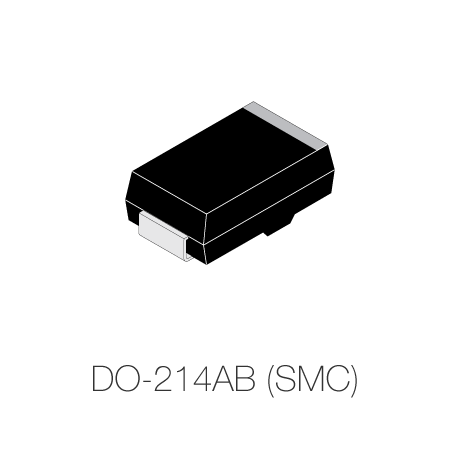

DO- 214AB

Surface Mount Super Fast Rectifier

Application  Power Supply, Adopter, charger

DOWNLOADS:



SKU: ES5JCDIL SMC Category:
Description

Device Types

  • ES5A     35V,5.0A

  • ES5B     70V,5.0A

    ES5C     105V,5.0A

  • ES5D     140V,5.0A

    ES5E     210V,5.0A

  • ES5G     280V,5.0A

  • ES5J     420V,5.0A

Shipping & Delivery

Related products

CDIL – ABS210 DBS

ABS22 ABS24 ABS26 ABS28 ABS210

Product Features:

ABS Plastic Package

Single Phase 2.0Amp Glass passivated Bridge Rectifiers

Downloads:
Quick view

CDIL- SS36B

SS32 SS33 SS34 SS35 SS36 SS38 SS39 S300

DO-214AA (SMB) Surface Mount Package

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Application : use in Low Voltage, High Frequency Inverters,

                           Free Wheeling Diodes and Polarity Protection

DOWNLOADS:
Quick view

CDIL- US1M

US1A US1B US1D US1G US1J US1K US1M

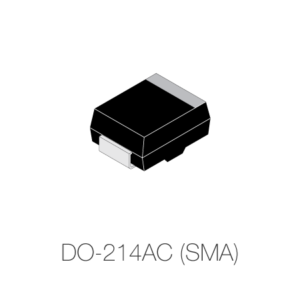

DO-214AC(SMA) Surface Mount Package
