Device Types
-
ES2A 50V,2.0A
-
ES2B 100V,2.0A
-
ES2C 150V,2.0A
-
ES2D 200V,2.0A
-
ES2E 300V,2.0A
-
ES2G 400V,2.0A
-
ES2J 600V,2.0A
CDIL-ES2J
ES2A ES2B ES2C ES2D ES2E ES2G ES2J

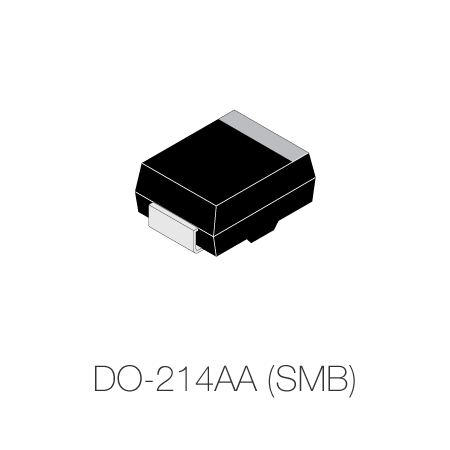

DO-214AA(SMB) Surface Mount Package
SURFACE MOUNT SUPER FAST RECTIFIER
Application Switching SMPS Adapters lighting applications.
DOWNLOADS:
- Datasheet for ES2A – ES2J
Description
Shipping & Delivery
