Home STMicroelectronics CD4051ST SOIC

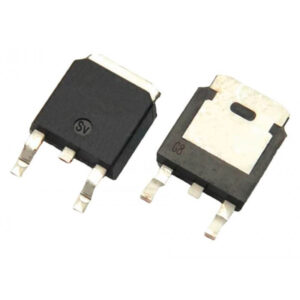

78M15ST DPAK
78M15ST DPAK
Back to products
Placeholder
L293ST SOIC

CD4051ST SOIC

The HCF4051 device is a monolithic integrated circuit fabricated in MOS (metal oxide semiconductor) technology available in SO-16 and PDIP-16 packages.

The HCF4051 analog multiplexer/demultiplexer is a digitally controlled analog switch having low ON impedance and very low OFF leakage current. This multiplexer circuit dissipates extremely low quiescent power over the full VDD– VSSand VDD– VEEsupply voltage range, independent of the logic state of the control signals.

This device is a single 8-channel multiplexer having three binary control inputs, A, B, and C, and an inhibit input. The three binary signals select 1 of 8 channels to be turned on, and connect one of the 8 inputs to the output. When a logic “1” is present at the inhibit input terminal all channels are off.

SKU: HCF4051M013TR Category: STMicroelectronics
Share:
  • Description
  • Shipping & Delivery
Description

All features

  • Low “ON” resistance: 125 Ω (typ.)
  • Over 15 V p.p signal-input range for VDD– VEE= 15 V
  • High “OFF” resistance, channel leakage: ± 100 pA (typ.) at VDD– VEE= 18 V
  • Binary address decoding on chip
  • High degree of linearity: < 0.5 % distortion typ. at fIS= 1 KHz, VIS= 5 Vpp, VDD– VSS≥ 10 V, RL= 10 kΩ
  • Very low quiescent power dissipation under all digital control input and supply conditions: 0.2 μW (typ.) VDD– VSS= VDD– VEE= 10 V
  • Matched switch characteristics: RON= 5 Ω (typ.) for VDD– VEE= 15 V
  • Wide range of digital and analog signal levels: digital 3 to 20, analog to 20 V p.p.
  • Quiescent current specified up to 20 V
  • 5 V, 10 V and 15 V parametric ratings
  • ESD performance
    • HBM: 2 kV
    • MM: 200 V
    • CDM: 750 V
  • Input leakage current II= 100 nA (max.) at VDD= 18 V, TA= 25 °C
  • 100 % tested for quiescent current
Shipping & Delivery

Related products

78L05ST SOIC

The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Quick view

78L05ST SOT89

The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Quick view

78M15ST DPAK

The L78M series of three-terminal positive regulators is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, resulting it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Quick view
Placeholder

L4978ST SOIC

Quick view
Placeholder

L4981ST SOIC

Quick view
Placeholder

L5973D ST

Quick view
Placeholder

L6384ST SOIC

Quick view

L6562ST SOIC8

The L6562A is a current-mode PFC controller operating in Transition Mode (TM). Coming with the same pin-out as its predecessors L6561 and L6562, it offers improved performance. The highly linear multiplier includes a special circuit, able to reduce AC input current distortion, that allows wide-range-mains operation with an extremely low THD, even over a large load range. The output voltage is controlled by means of a voltage-mode error amplifier and an accurate (1% @TJ = 25°C) internal voltage reference. The device features extremely low consumption (60µA max. before start-up and <5 mA operating) and includes a disable function suitable for IC remote ON/OFF, which makes it easier to comply with energy saving requirements (Blue Angel, EnergyStar, Energy2000, etc.). An effective two-step OVP enables to safely handle overvoltages either occurring at start-up or resulting from load disconnection. The totem-pole output stage, capable of 600 mA source and 800 mA sink current, is suitable to drive high current MOSFETs or IGBTs. This, combined with the other features and the possibility to operate with the proprietary Fixed-Off-Time control, makes the device an excellent low-cost solution for EN61000-3-2 compliant SMPS in excess of 350W.
Quick view
