Home NXP Diodes BZV55-C18
BZT52H-C18
BZT52H-C18
Back to products
BZX84-C18
BZX84-C18

BZV55-C18

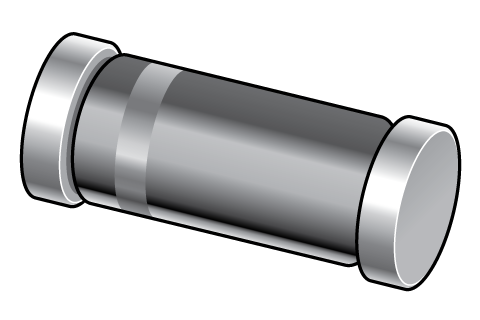

Low-power voltage regulator diodes in small hermetically sealed glass SOD80C Surface-Mounted Device (SMD) packages. The diodes are available in the normalized E24 ±2 % (BZV55-B) and approximately ±5 % (BZV55-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.

Features and benefits

  • Non-repetitive peak reverse power dissipation: ≤ 40 W
  • Total power dissipation: ≤ 500 mW
  • Two tolerance series: ±2 % and ±5 %
  • Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
  • Low differential resistance
  • Small hermetically sealed glass SMD package

DOWNLOADS:

  • Datasheet
SKU: 18V BZV55C NXP Category: Diodes
Share:
  • Description
  • Shipping & Delivery
Description

Applications

  • General regulation functions
Shipping & Delivery
